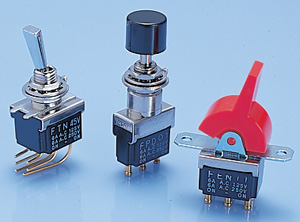

ACTUATORS wide choice of levers i.e.,standard,large,short long,flatted and locking levers availableto meet varying requirements in panel design and applications. LEVER-STOP DEVICE toggle lever-stopper is built in to prevent "push-in" when a downward force is applied to the lever. INDIVIDUAL SPRING individual spring for each pole is employed to provide stable and reliable contacts. NEW FRAM DESIGN New frame design assures high insulation and stability. GLASS-FILLED POLYESTER CASE(UL94V-O) The case is manufactured from UL94V-O which has excellent heat and arc resistantproperties and high insulation resistance.Creepage barriers are featured in all Multipole Switches providing increased creepage between contacts. MOVING CONTACT SUPPORT Unlike many other switches that rely on the molding to provide support for the moving contact ,series F does utilize a unique system to fulfill this important function, greatly increasing the mechanical life of the switch. TERMINAL PITCH Spacing between terminals in 0.2"(5.08mm) conforming to ISO standard P/C board hole matrix. GLOLD-FLASHED TERMINALS Available in 6 different configurations such as half-hollow cylindricals. All gold-flashed tp prevernt perfectly oxidation and for ease of soldering. MOLDED-IN TERMINAL CONSTRUCTION Molded-in terminals prevent the ingress of solder flux and contaminants. FINE SILVER CONTACTS Ensure long life and contact reliability(For option of gold contact,please contact us.) COMMON MOUNTING HEIGHT FROM SP TO 4P The height of SP to 4P switches is identical enabling various switches to be mounted on the same P/C board. STAINLESS STEEL FRAME
UL, CSA LISTED
|
